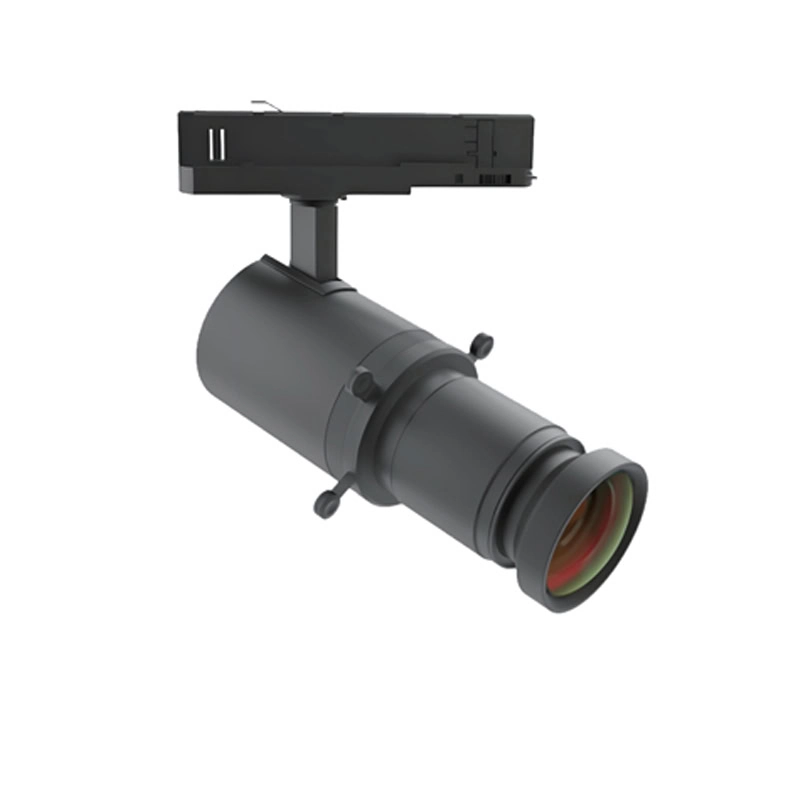

CCT Adjustable Track Light – TD Series

Track light spotlight with wide optical beam angles of 70°, Use a high CRI light source and precise light control. It can effectively reduce glare and improve visual comfort through precise light control and anti-glare design. Slicing components are designed to be lightweight and easy to install and replace.

bolt (1)

Wattage

30W
brightness-up

Lighting Specifications

IP20, CRI>90/95
battery-eco

Light efficiency

1500lm
circuit-voltmeter

Input Voltage

AC200-240V 50/60Hz
brightness (1)

Dimming Options

Standard /0-10V DlM/Triac Dim/DALI dimmable
bulb (2)

LED Type

CITIZEN /CREE/OSRAM LEDs
shadow

LED Driver

TRIDONIC/PHILIPS/OSRAM drivers
adjustments-alt

Mounting Type

Adapter on track/ Surface mounted
telescope

Zoom Range

Wide beam angle 70°
vector-bezier-2

Wiring Configuration

2wires / 3wires / 4wires /6 wires
sparkles

Color Temperature

2700K / 3000K / 4000K / 5000K / 5700K / RGBW
clock-2

Lifespan

Ta40℃ L70> 54000 hours
replace

Warranty

5 Years

Track Light Spotlight Optical Slice To Create Different Shadow

An adjustable optical slice is added inside the track light to change the path and distribution of light by adjusting the Angle, position or combination of the slice.
Adjust slice position directly by knob or push rod.The light can be focused, spread, cut or patterned to create different light and shadow effects.
LED Track Light Spotlight
Track Light Spotlight GS light

Customized Your Own LOGO Or Design Pattern

You can provide your own logo or design pattern, and we will make customized diaphragm according to your needs. Use metal, glass or acrylic to meet different light effects and durability needs.
When the light is turned on, the logo or pattern on the diaphragm is projected onto the wall, floor or other surface through the light, creating a unique light and shadow effect.
It is suitable for brand stores, exhibition halls, hotels and other places to enhance brand recognition and atmosphere.

All Aluminum Material Track Light Spotlight

Outdoor lighting: Due to its strong corrosion resistance, all-aluminum lamps are also suitable for outdoor landscape lighting.

The low density and light weight of aluminum make the installation of track lights more convenient while reducing the burden on the ceiling.
Excellent heat dissipation performance means that the lamps can also maintain stable light efficiency when working for a long time, avoiding light decay or damage caused by overheating.
Track Light Spotlight structure

Details Of LED Track Light Spotlight

Slicing lenses are mainly used to control the distribution and shape of the light, and through precise optical design, the light can be cut into a specific shape Adjustable lenses allow users to adjust the Angle and range of light as needed, usually supporting stepless adjustment from wide Angle to narrow Angle. CCT dip regulators are used to adjust the color temperature of the light, usually supporting stepless adjustment from warm light (2700K) to cold light (6500K).
Polished slice track light
Slice Lens
adjustable CCT led track light
CCT Adjustable
adjustable zoomable lens
Adjustable lens

Diversified Light And Shadow Using Track Light Spotlight

Diversified light and shadow effects, by manually adjusting the slice can achieve focusing effect, soft light effect, cutting effect and dynamic pattern. Support customized slices of special shapes or patterns according to customer needs to meet more personalized lighting needs. Provide professional design advice to help customers achieve the ideal lighting effect.
Effect of led track lights

Size Of Track Light Spotlight

Track Light Spotlight size 79mm
Track Light Spotlight size

Specification Of LED Track Light Spotlight

Model No.
GS-TD-30W
Power
30W
Material
316 Stainless steel+Aluminum
Beam Angle
70°
Light efficiency
1500lm
Voltage
AC200-240V
LEDs
CITIZEN/CREE/OSRAM
PF
>0.95
Wires
2/3/4/6/Suction top
LED Lifespan
>50000 hours
IP
IP20
CRI
>90/95
CCT
2700K/3000K/4000K/5000K/5700K/RGBW
Size
Φ79*L234.8*H90
Warranty
5 Years

Related Products

led-track-lights-shapeable-gs
Shapeable LED Track Light - TS Series
led-track-lights-dimmable-gs
Dimmable Shapeable Track Light – TA Series
led-track-lights-gs
Lens Changeable LED Track Light - TZ Series

Application Scenarios
Using Track Light Spotlight

This product perfectly meets the high requirements for lighting quality and durability in commercial spaces such as shopping malls, exhibition halls, and hotels. At the same time, it can also be integrated into various modern minimalist and industrial-style home decoration styles, significantly enhancing the overall atmosphere of the space.
Its sturdy structure and high-performance optical system can meet the demands of long-term and high-intensity use in commercial settings. Meanwhile, the simple and sleek design and the diverse light effect options can infuse modernity and artistic atmosphere into the home environment, achieving the unity of functionality and aesthetics.
Track Light Spotlight used in store
Track Light Spotlight application
usage of dimmable track light

CCT Adjustable Track Light FAQs

It works by integrating a CCT control system that lets users adjust the color temperature via a switch, driver, or control method depending on the model.

It allows one fixture to create multiple lighting atmospheres, reducing the need for different lamp types in one space.

LED Track Light is widely used in retail stores, galleries, museums, and residential interiors for flexible accent lighting.

GS Light focuses on professional lighting engineering, providing stable LED Track Light systems designed for commercial and architectural applications.

Yes, most LED Track Light systems allow horizontal rotation and vertical adjustment for precise lighting direction.

It can create accent lighting, ambient lighting, and focused display lighting depending on beam setup.

Yes, it enhances spatial layering and highlights architectural details effectively.

Because it combines flexible color temperature control, reliable LED performance, and professional lighting design support for modern spaces.
